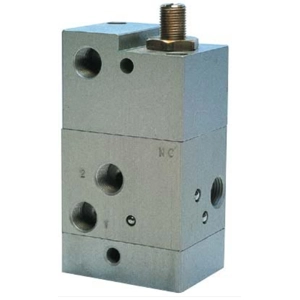

This two-way valve offers two pressure settings at the user port: System pressure or Regulated pressure (0-3 bar) by adjusting screw R.

A three-way directional control valve must be fitted downstream of this valve if the circuit is required to exhaust. The regulated pressure can be read by connecting a manometer at point M. Normally closed.

NORMALLY CLOSED: Without signal at point X the output is regulated pressure.
NORMALLY OPEN: Without signal at point X the output is system pressure.

Ports: G1/8"
Working pressure: 2.5-10 bat

Adjustable pressure range: 3-10 bar

Temperature rnage: Max 60oC
